CLASSIC SERIES
ZD 1800D
4Ohms Maximum Output @0.03% THD : 1800W RMS/1Ohm
4 Ohms Bridged Mono Output @0.02% THD : 1200W RMS/2Ohm
2 Ohms WRMS Output @0.1THD : 600W RMS/4Ohm
Low Pass Filter : 40Hz-250Hz
Subsonic Filter : 15Hz-40hz/Subsonic
Frequency Response : 20-500Hz
Signal to Noise Ratio : 100dB
Input Sensitivity : 150mV-2.5V
Input Impedance : 10K Ohms
Operation Voltage : DC 14.4V
Speaker Impedance @Stereo Driven : 1 Ohms
Remote Control : Optional
Fuse Rating 20A x 3
Dimensions (W x H x D)mm : 320 x 50 x 244
Full Mosfet Class D Amplifier
2 Input/Mono Channel Output
Low CUrrent Consumption
Fully 1Ohm Stable Operation
Two Speaker Operation
RCA Line Out
Transparent Power & Speaker Terminals
Crossover Slope (24dB per Oct)
Bass Boost Control
Variable Subsonic Filter
Variable Low Pass Filter
Wired Remote Control
Thermal, Overload, Shot Circuit And DC Off-Set Protection

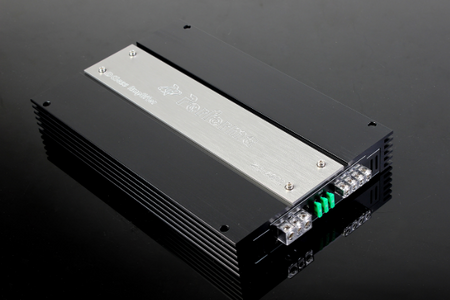

ZD 2200D
4Ohms Maximum Output @0.03% THD : 2200W RMS/1 Ohm
4 Ohms Bridged Mono Output @0.02% THD : 1500W RMS/2 Ohm
2 Ohms WRMS Output @0.1THD : 800W RMS/4Ohm
Low Pass Filter : 40Hz-250Hz
Subsonic Filter : 15Hz-40hz/Subsonic
Frequency Response : 20-500Hz
Signal to Noise Ratio : 100dB
Input Sensitivity : 150mV-2.5V
Input Impedance : 10KOhms
Operation Voltage : DC 14.4V
Speaker Impedance @Stereo Driven : 1 Ohms
Remote Control : Optional
Fuse Rating 25A x 3
Dimensions (W x H x D)mm : 380 x 50 x 244
Full Mosfet Class D Amplifier
2 Input/Mono Channel Output
Low CUrrent Consumption
Fully 1Ohm Stable Operation
Two Speaker Operation
RCA Line Out
Transparent Power & Speaker Terminals
Crossover Slope (24dB per Oct)
Bass Boost Control
Variable Subsonic Filter
Variable Low Pass Filter
Wired Remote Control
Thermal, Overload, Shot Circuit And DC Off-Set Protection

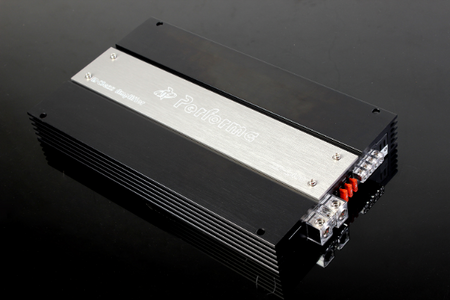

ZD 2400D
4Ohms Maximum Output @0.03% THD : 1800W RMS/1Ohm
4 Ohms Bridged Mono Output @0.02% THD : 1200W RMS/2Ohm
2 Ohms WRMS Output @0.1THD : 600W RMS/4Ohm
Low Pass Filter : 40Hz-250Hz
Subsonic Filter : 15Hz-40hz/Subsonic
Frequency Response : 20-500Hz
Signal to Noise Ratio : 100dB
Input Sensitivity : 150mV-2.5V
Input Impedance : 10K Ohms
Operation Voltage : DC 14.4V
Speaker Impedance @Stereo Driven : 1 Ohms
Remote Control : Optional
Fuse Rating 20A x 3
Dimensions (W x H x D)mm : 320 x 50 x 244
Full Mosfet Class D Amplifier
2 Input/Mono Channel Output
Low CUrrent Consumption
Fully 1Ohm Stable Operation
Two Speaker Operation
RCA Line Out
Transparent Power & Speaker Terminals
Crossover Slope (24dB per Oct)
Bass Boost Control
Variable Subsonic Filter
Variable Low Pass Filter
Wired Remote Control
Thermal, Overload, Shot Circuit And DC Off-Set Protection

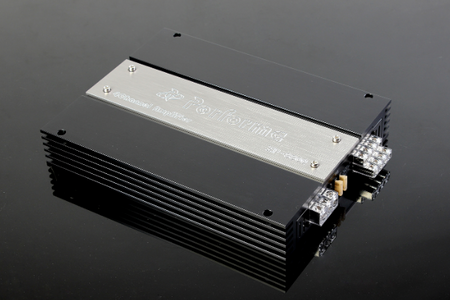

ZP8800
4Ohms Maximum Output @0.03% THD : 800W
4 Ohms Bridged Mono Output @0.02% THD : 2X400W
2 Ohms WRMS Output @0.1THD : 4X200W
Low Pass Filter : 40Hz-250Hz
High Pass Filter : 40Hz-1KHz
Frequency Response : 10-40000Hz
Signal to Noise Ratio : 100dB
Stereo separation : >55dB
Input Sensitivity : 145mV-2.4V
Input Impedance : 10KOhms
Operation Voltage : DC 14.4V
Speaker Impedance @Stereo Driven : 4 Ohms
Fuse Rating 25A x 2
Dimensions (W x H x D)mm : 320 x 50 x 244
Ultra Stable PWM (pulse width modulated) mosfet power supply
2 Ohm Stable operation with output power increase
Built-in Crossover top control
CH 1 / 2 : Variable Hi-pass filter (40Hz-1KHz)
Variable Low-pass Filter (40Hz-250Hz)
Variable Subsinic Filter (15Hz-40Hz)
CH 3 / 4 : Variable Hi-pass filter (40Hz-1KHz)
Variable Low-pass Filter (40Hz-250Hz)
Variable Subsinic Filter (15Hz-40Hz)
Tri-Mode Capability for simultaneous hook-up of two stereo Channels and subwoofer
Crossover mode switch (hi-full-low)
Wired Remote Control (optional 5meter volume wire)
Soft-start delay turn-on circuit
Automatic remote on/off switshing
Power on and protect led indicators
Thermal, overload, short, circuit, and DC oof-set protection
Transparent power and speaker terminal
Line out RCA jack

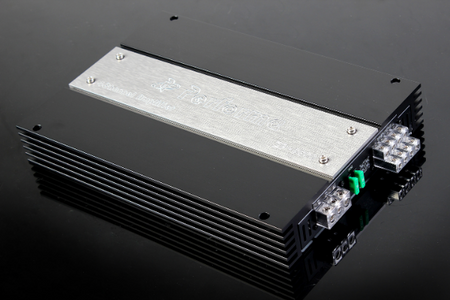

ZP 9900
4Ohms Maximum Output @0.03% THD : 1200W
4 Ohms Bridged Mono Output @0.02% THD : 2X600W
2 Ohms WRMS Output @0.1THD : 4X300W
Low Pass Filter : 40Hz-250Hz
High Pass Filter : 40Hz-1KHz
Frequency Response : 10-40000Hz
Signal to Noise Ratio : 100dB
Stereo separation : >55dB
Input Sensitivity : 145mV-2.4V
Input Impedance : 10KOhms
Operation Voltage : DC 14.4V
Speaker Impedance @Stereo Driven : 4 Ohms
Fuse Rating 20A x 2
Dimensions (W x H x D)mm : 350 x 50 x 244
Ultra Stable PWM (pulse width modulated) mosfet power supply
2 Ohm Stable operation with output power increase
Built-in Crossover top control
CH 1 / 2 : Variable Hi-pass filter (40Hz-1KHz)
Variable Low-pass Filter (40Hz-250Hz)
Variable Subsinic Filter (15Hz-40Hz)
CH 3 / 4 : Variable Hi-pass filter (40Hz-1KHz)
Variable Low-pass Filter (40Hz-250Hz)
Variable Subsinic Filter (15Hz-40Hz)
Tri-Mode Capability for simultaneous hook-up of two stereo Channels and subwoofer
Crossover mode switch (hi-full-low)
Wired Remote Control (optional 5meter volume wire)
Soft-start delay turn-on circuit
Automatic remote on/off switshing
Power on and protect led indicators
Thermal, overload, short, circuit, and DC oof-set protection
Transparent power and speaker terminal
Line out RCA jack
