MINI SERIES

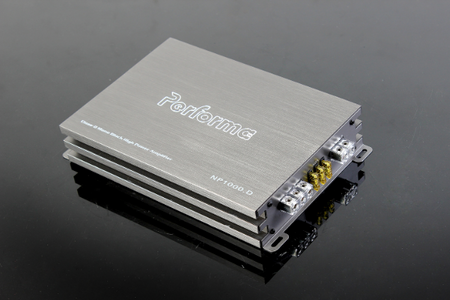

NP 1000D
Max Power output : 2000W
600 RMS Stable Mono Output At 1 Ohm @13,8V
Class-D Circuitry
Variable Low Pass : 30Hz-250Hz
Variable Subsonic Filter :10Hz-250Hz
Variable Bass Boost Control : 0dB-18dB
Remote Dash Mount Bass Knob Kontrol
S/N Ratio : 80 dB
T.H.D : 0.1%
Phase Shift Control : 0-180 Degree
Input Level Control
Visual Indicators : Protect/Power
3 Protection Measures : Over Heat/Short Circuit/Overload
Platinum RCA Connectors And Terminals

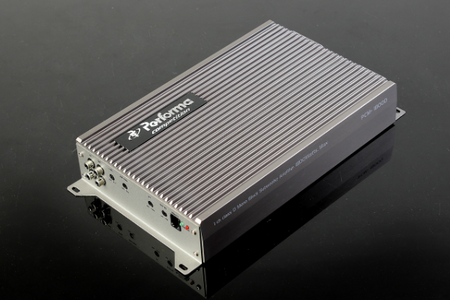

PCM 1800D
* 4Ohms Maximum Output @0.03% THD : 1800W RMS/1Ohm
* 4 Ohms Bridged Mono Output @0.02% THD : 1200W RMS/2Ohm
* 2 Ohms WRMS Output @0.1THD : 600W RMS/4Ohm
* Low Pass Filter : 40Hz-250Hz
* Subsonic Filter : 15Hz-40hz/Subsonic
* Frequency Response : 20-500Hz
* Signal to Noise Ratio : 100dB
* Input Sensitivity : 150mV-2.5V
* Input Impedance : 10KOhms
Operation Voltage : DC 12V
Speaker Impedance @Stereo Driven : 1 Ohms
Remote Control : Optional
Fuse Rating 20A x 3
Dimensions (W x H x D)mm : 280 x 552 x 180
Full Mosfet Class D Amplifier
2 Input/Mono Channel Output
Low CUrrent Consumption
Fully 1Ohm Stable Operation
Two Speaker Operation
RCA Line Out
Transparent Power & Speaker Terminals
Crossover Slope (24dB per Oct)
Bass Boost Control
Variable Subsonic Filter
Variable Low Pass Filter
Wired Remote Control
Thermal, Overload, Shot Circuit And DC Off-Set Protection

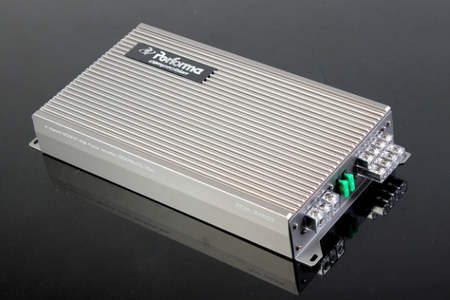

PCM 2400X
4Ohms Maximum Output @0.03% THD : 1200W
4 Ohms Bridged Mono Output @0.02% THD : 2X600W
2 Ohms WRMS Output @0.1THD : 4X300W
Low Pass Filter : 40Hz-250Hz
High Pass Filter : 40Hz-1KHz
Frequency Response : 10-40000Hz
Signal to Noise Ratio : 100dB
Stereo separation : >55dB
Input Sensitivity : 145mV-2.4V
Input Impedance : 10KOhms
Operation Voltage : DV 12.4V
Speaker Impedance @Stereo Driven : 4 Ohms
Fuse Rating 20A x 3
Dimensions (W x H x D)mm : 380 x 63 x 236
Ultra Stable PWM (pulse width modulated) mosfet power supply
2 Ohm Stable operation with output power increase
Built-in Crossover top control
CH 1 / 2 :
Variable Hi-pass filter (40Hz-1KHz)
Variable Low-pass Filter (40Hz-250Hz)
Variable Subsinic Filter (15Hz-40Hz)
CH 3 / 4 :
Variable Hi-pass filter (40Hz-1KHz)
Variable Low-pass Filter (40Hz-250Hz)
Variable Subsinic Filter (15Hz-40Hz)
Tri-Mode Capability for simultaneous hook-up of two stereo Channels and subwoofer
Crossover mode switch (hi-full-low)
Wired Remote Control (optional 5meter volume wire)
Soft-start delay turn-on circuit
Automatic remote on/off switshing
Power on and protect led indicators
Thermal, overload, short, circuit, and DC oof-set protection
Transparent power and speaker terminal
Line out RCA jack
